GraphTableWidget Class Reference

A QWidget containing a QTabWidget with two tabs — Nodes and Edges — each backed by a sortable, searchable table view. More...

#include <widgets/graphtablewidget.h>

Inheritance diagram for GraphTableWidget:

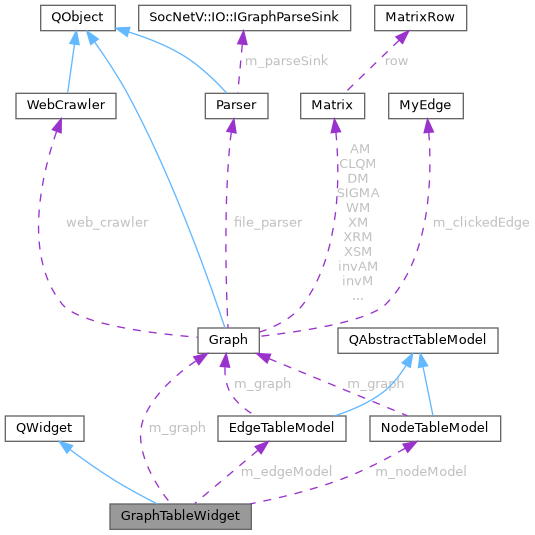

Collaboration diagram for GraphTableWidget:

Public Slots
void	refresh (Graph *graph)
	Repopulates both the node and edge models from graph.
void	exportNodesCSV ()
void	exportNodesJSON ()
void	exportEdgesCSV ()
void	exportEdgesJSON ()
void	importNodesCSV ()
void	importNodesJSON ()
void	importEdgesCSV ()
void	importEdgesJSON ()

Signals
void	nodeSelected (int number)
void	exportStatusMessage (const QString &message)
void	importStatusMessage (const QString &message)

Public Member Functions
	GraphTableWidget (QWidget *parent=nullptr)
	Constructs the GraphTableWidget.
QAbstractItemModel *	nodeModel () const
QAbstractItemModel *	edgeModel () const

Private Slots
void	onNodeRowClicked (const QModelIndex &proxyIndex)
	Maps the proxy index to a source index and emits nodeSelected().

Private Member Functions
void	doExport (QAbstractItemModel *proxyModel, const QString &defaultName, bool csv)
	Opens a save dialog and writes proxyModel via TableExport.
void	doImport (bool forNodes, bool csv)
	Opens DialogImportAttributes and, on acceptance, calls the appropriate Graph import method then refreshes the table.

Private Attributes
Graph *	m_graph = nullptr
QTabWidget *	m_tabs
QTableView *	m_nodeView
QTableView *	m_edgeView
NodeTableModel *	m_nodeModel
EdgeTableModel *	m_edgeModel
QSortFilterProxyModel *	m_nodeProxy
QSortFilterProxyModel *	m_edgeProxy
QLineEdit *	m_nodeSearch
QLineEdit *	m_edgeSearch

Detailed Description

A QWidget containing a QTabWidget with two tabs — Nodes and Edges — each backed by a sortable, searchable table view.

Call refresh() whenever the graph data changes and the panel is visible. The widget itself does not auto-refresh; the caller controls when to rebuild the cache.

Constructor & Destructor Documentation

GraphTableWidget()

GraphTableWidget::GraphTableWidget ( QWidget *  parent = nullptr )

explicit

Constructs the GraphTableWidget.

Builds both tabs (Nodes, Edges) with search bar, Refresh button, and a sortable/searchable QTableView backed by a QSortFilterProxyModel.

Member Function Documentation

doExport()

void GraphTableWidget::doExport ( QAbstractItemModel *  proxyModel, const QString &  defaultName, bool  csv  )

private

Opens a save dialog and writes proxyModel via TableExport.

defaultName is used to suggest a filename ("nodes" or "edges"). csv selects CSV (true) or JSON (false) format.

doImport()

void GraphTableWidget::doImport ( bool  forNodes, bool  csv  )

private

Opens DialogImportAttributes and, on acceptance, calls the appropriate Graph import method then refreshes the table.

forNodes true → import node attributes; false → import edge attributes. csv true → CSV format; false → JSON format.

edgeModel()

QAbstractItemModel * GraphTableWidget::edgeModel

(

)

const

Returns the raw (unfiltered) edge source model.

exportEdgesCSV

void GraphTableWidget::exportEdgesCSV ( )

slot

Prompts for a file path and exports visible edge rows as CSV.

exportEdgesJSON

void GraphTableWidget::exportEdgesJSON ( )

slot

Prompts for a file path and exports visible edge rows as JSON.

exportNodesCSV

void GraphTableWidget::exportNodesCSV ( )

slot

Prompts for a file path and exports visible node rows as CSV.

exportNodesJSON

void GraphTableWidget::exportNodesJSON ( )

slot

Prompts for a file path and exports visible node rows as JSON.

exportStatusMessage

void GraphTableWidget::exportStatusMessage ( const QString &  message )

signal

Emitted with a status message after an export attempt.

importEdgesCSV

void GraphTableWidget::importEdgesCSV ( )

slot

Opens the column-mapping dialog and imports edge attributes from a CSV.

importEdgesJSON

void GraphTableWidget::importEdgesJSON ( )

slot

Opens the column-mapping dialog and imports edge attributes from a JSON.

importNodesCSV

void GraphTableWidget::importNodesCSV ( )

slot

Opens the column-mapping dialog and imports node attributes from a CSV.

importNodesJSON

void GraphTableWidget::importNodesJSON ( )

slot

Opens the column-mapping dialog and imports node attributes from a JSON.

importStatusMessage

void GraphTableWidget::importStatusMessage ( const QString &  message )

signal

Emitted with a status message after an import attempt.

nodeModel()

QAbstractItemModel * GraphTableWidget::nodeModel

(

)

const

Returns the raw (unfiltered) node source model.

nodeSelected

void GraphTableWidget::nodeSelected ( int  number )

signal

Emitted when the user clicks a row in the Nodes tab.

onNodeRowClicked

void GraphTableWidget::onNodeRowClicked ( const QModelIndex &  proxyIndex )

privateslot

Maps the proxy index to a source index and emits nodeSelected().

refresh

void GraphTableWidget::refresh ( Graph *  graph )

slot

Repopulates both the node and edge models from graph.

Repopulates both models from graph and resizes columns.

Stores a pointer to graph for subsequent Refresh button clicks.

Member Data Documentation

m_edgeModel

EdgeTableModel* GraphTableWidget::m_edgeModel

private

m_edgeProxy

QSortFilterProxyModel* GraphTableWidget::m_edgeProxy

private

m_edgeSearch

QLineEdit* GraphTableWidget::m_edgeSearch

private

m_edgeView

QTableView* GraphTableWidget::m_edgeView

private

m_graph

Graph* GraphTableWidget::m_graph = nullptr

private

m_nodeModel

NodeTableModel* GraphTableWidget::m_nodeModel

private

m_nodeProxy

QSortFilterProxyModel* GraphTableWidget::m_nodeProxy

private

m_nodeSearch

QLineEdit* GraphTableWidget::m_nodeSearch

private

m_nodeView

QTableView* GraphTableWidget::m_nodeView

private

m_tabs

QTabWidget* GraphTableWidget::m_tabs

private

---

The documentation for this class was generated from the following files:

• graphtablewidget.h
• graphtablewidget.cpp
