#include <graphicsedge.h>

Inheritance diagram for GraphicsEdge:

[legend]

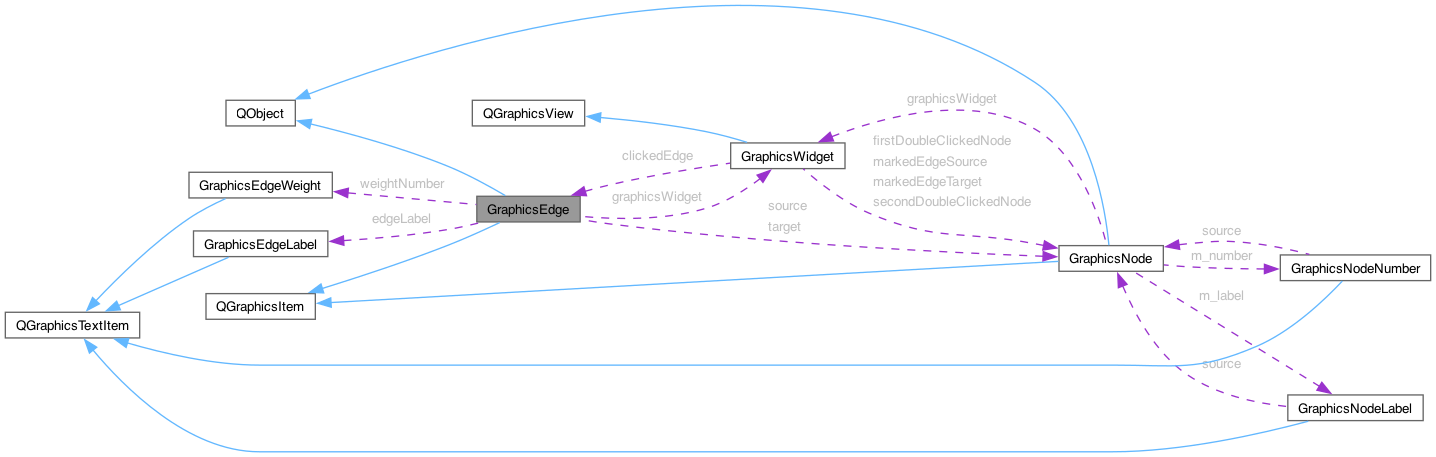

Collaboration diagram for GraphicsEdge:

[legend]

Public Types
enum	{ Type = UserType + 2 }

Public Slots
void	adjust ()
	Recomputes all geometry for this edge.

Public Member Functions
	GraphicsEdge (GraphicsWidget , GraphicsNode , GraphicsNode *, const qreal &weight, const QString &label, const QString &color, const Qt::PenStyle &style, const int &type, const bool &drawArrows, const bool &bezier, const bool &weightNumbers=false, const bool &highlighting=true, const int &arrowSize=6)
	~GraphicsEdge ()
	handles the events of a click on an edge
int	type () const
GraphicsNode *	sourceNode () const
	Returns the source node of this graphics edge.
void	setSourceNode (GraphicsNode *node)
	Sets the source node of this graphics edge.
GraphicsNode *	targetNode () const
	Returns the target node.
void	setTargetNode (GraphicsNode *node)
	Sets the target node.s.
int	sourceNodeNumber ()
int	targetNodeNumber ()
qreal	dx () const
	Returns the horizontal difference between target and source nodes.
qreal	dy () const
	Returns the vertical difference between target and source nodes.
qreal	length () const
	Returns the euclidean length of the edge.
void	setSourceNodeSize (const int &size)
	Called from graphicsNode to update edge offset from source node (i.e. when node size changes).
void	setTargetNodeSize (const int &size)
	Called from graphicsNode to update edge offset from target node (i.e. when node size changes).
void	setMinimumOffsetFromNode (const int &offset)
	Updates Minimum Offset From Node and calls adjust to update the edge.
void	removeRefs ()
	Removes any references to this edge in source and target nodes.
void	setWeight (const qreal &w)
	Changes the edge weight - Updates both the width and the weightNumber.
qreal	weight () const
	Returns the weight/value of this edge.
void	addWeightNumber ()
	Adds a graphics edge weight to this edge.
void	setWeightNumberVisibility (const bool &toggle)
	Toggles visibility of weight numbers.
void	setLabel (const QString &label)
	Changes the edge label.
QString	label () const
	Returns the edge label text.
void	addLabel ()
	Adds a graphics edge label to this edge.
void	setLabelVisibility (const bool &toggle)
	Toggles the graphics edge label visibility.
void	showArrows (const bool &)
	Toggles displaying edge arrow.
void	toggleBezier (const bool &toggle)
void	setArrowSize (const int &size)
	Sets the arrow size for this edge. Recalculates only the four cached arrow-corner points (no path rebuild) then schedules a repaint.
int	arrowSize () const
void	setDirectionType (const int &dirType=0)
	Changes the direction type of edge A->B.
int	directionType ()
	returns the direction type of this edge
qreal	width () const
	Returns the width of the edge as a function of edge weight.
QPen	pen () const
	Returns the QPen for this edge – the pen changes when the edge state changes/.
void	setState (const int &state)
	Sets the edge state.
void	setStyle (const Qt::PenStyle &style)
	Sets the PenStyle of this edge.
Qt::PenStyle	style () const
	Returns the PenStyle of this edge.
void	setColor (const QString &str)
	Sets the edge color.
QColor	color () const
	Returns the edge QColor.
QString	colorToPajek ()
	Returns the edge color in pajek-accepted format.
void	setHighlighted (const bool &flag)
	Toggles the highlighted state of the the edge, if highlighting is allowed.
void	setHighlighting (const bool &toggle)
	Toggles edge highlighting on or off.
QPainterPath	shape () const
	Returns the shape of this edge as a QPainterPath in local coordinates. The shape is used for many things, including collision detection, hit tests, and for the QGraphicsScene::items() functions. The default implementation calls boundingRect() to return a simple rectangular shape, but we reimplement it to return a more accurate shape for non-rectangular items.

Protected Member Functions
QRectF	boundingRect () const
	Defines the outer bounds of the edge as a rectangle; All painting will be restricted to inside the edge's bounding rect. Qt uses this bounding rect to determine whether the edge requires redrawing.
void	paint (QPainter painter, const QStyleOptionGraphicsItem option, QWidget *widget)
	Paints the edge onto the canvas.
QVariant	itemChange (GraphicsItemChange change, const QVariant &value)
	Called when the edge changes, i.e. moves, becomes disabled or changes its visibility.

Private Member Functions
void	computeArrowPoints ()
	Fills the four cached arrow-corner QPointFs.
void	rebuildPens ()
	Rebuilds the three cached QPens and the cached QBrush.

Private Attributes
GraphicsWidget *	graphicsWidget
GraphicsNode *	source
GraphicsNode *	target
GraphicsEdgeWeight *	weightNumber
GraphicsEdgeLabel *	edgeLabel
QPainterPath	m_path
QPointF	sourcePoint
QPointF	targetPoint
QPointF	edgeOffset
QPointF	m_destArrowP1
QPointF	m_destArrowP2
QPointF	m_srcArrowP1
QPointF	m_srcArrowP2
qreal	m_arrowSize
qreal	m_minOffsetFromNode
qreal	m_offsetFromTargetNode
qreal	m_offsetFromSourceNode
Qt::PenStyle	m_style
int	m_state
QString	m_colorNegative
QString	m_label
QColor	m_color
qreal	m_weight
qreal	m_width
int	m_edgeDirType
qreal	angle
qreal	m_srcAngle
qreal	line_length
qreal	line_dx
qreal	line_dy
bool	m_Bezier
bool	m_drawArrows
bool	m_drawWeightNumber
bool	m_drawLabel
bool	m_hoverHighlighting
bool	m_isClicked
QPen	m_penRegular
QPen	m_penHighlight
QPen	m_penHover
QBrush	m_brush

Member Enumeration Documentation

◆ anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

◆ GraphicsEdge()

SOCNETV_USE_NAMESPACE GraphicsEdge::GraphicsEdge	(	GraphicsWidget *	gw,
		GraphicsNode *	from,
		GraphicsNode *	to,
		const qreal &	weight,
		const QString &	label,
		const QString &	color,
		const Qt::PenStyle &	style,
		const int &	type,
		const bool &	drawArrows,
		const bool &	bezier,
		const bool &	weightNumbers = false,
		const bool &	highlighting = true,
		const int &	arrowSize = 6 )

◆ ~GraphicsEdge()

GraphicsEdge::~GraphicsEdge ( )

handles the events of a click on an edge

Parameters

event

Member Function Documentation

◆ addLabel()

void GraphicsEdge::addLabel ( )

Adds a graphics edge label to this edge.

◆ addWeightNumber()

void GraphicsEdge::addWeightNumber ( )

Adds a graphics edge weight to this edge.

◆ adjust

void GraphicsEdge::adjust ( )

slot

Recomputes all geometry for this edge.

Called whenever a connected node moves or any geometric property changes (node size, offset, bezier mode, etc.). Executes four steps in order:

Snapshots line_dx / line_dy / line_length from current node centres.
Sets sourcePoint / targetPoint — offset from node centres along the chord direction (straight mode) or along the curve tangent at each endpoint (bezier mode), so arrowheads land on the node boundary in the correct direction.
Rebuilds m_path:
- straight edge: lineTo()
- quadratic bezier arc: quadTo() with curvature capped at min(40 px, line_length × 0.3) to avoid extreme bowing on short edges
- self-loop: cubicTo() with fixed ±30 px control offsets
Caches angle (tangent at targetPoint) and m_srcAngle (tangent at sourcePoint), then calls computeArrowPoints() to fill the four cached arrow-corner QPointFs.

Arrow polygons are intentionally not added to m_path so that changing m_arrowSize only requires recomputing four QPointFs and a repaint — not a full path rebuild.

◆ arrowSize()

int GraphicsEdge::arrowSize ( ) const

◆ boundingRect()

QRectF GraphicsEdge::boundingRect ( ) const

protected

Defines the outer bounds of the edge as a rectangle; All painting will be restricted to inside the edge's bounding rect. Qt uses this bounding rect to determine whether the edge requires redrawing.

Returns

◆ color()

QColor GraphicsEdge::color ( ) const

Returns the edge QColor.

Returns

◆ colorToPajek()

QString GraphicsEdge::colorToPajek ( )

Returns the edge color in pajek-accepted format.

Called from Graph

Returns

◆ computeArrowPoints()

void GraphicsEdge::computeArrowPoints ( )

private

Fills the four cached arrow-corner QPointFs.

Uses angle (curve tangent direction at targetPoint, in the source→target sense) for the destination arrowhead wings, and m_srcAngle (tangent direction at sourcePoint) for the source arrowhead on undirected / reciprocated edges. For straight edges m_srcAngle == angle; for bezier curves they differ because the tangent varies along the arc.

Called by adjust() and by setArrowSize() so paint() performs no trigonometry of its own.

◆ directionType()

int GraphicsEdge::directionType ( )

returns the direction type of this edge

Returns

◆ dx()

qreal GraphicsEdge::dx ( ) const

Returns the horizontal difference between target and source nodes.

Returns

◆ dy()

qreal GraphicsEdge::dy ( ) const

Returns the vertical difference between target and source nodes.

Returns

◆ itemChange()

QVariant GraphicsEdge::itemChange	(	GraphicsItemChange	change,
		const QVariant &	value )

protected

Called when the edge changes, i.e. moves, becomes disabled or changes its visibility.

Parameters

change
value

Returns

◆ label()

QString GraphicsEdge::label ( ) const

Returns the edge label text.

Returns: QString

◆ length()

qreal GraphicsEdge::length ( ) const

Returns the euclidean length of the edge.

Returns

◆ paint()

void GraphicsEdge::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget )

protected

Paints the edge onto the canvas.

Draws the pre-built line/self-loop m_path, then draws the arrow polygons from the cached corner points (m_destArrowP1/P2 and, for undirected/reciprocated edges, m_srcArrowP1/P2). No trigonometry is performed here — all geometry is pre-computed by adjust() and computeArrowPoints(), so this method is as cheap as possible for the common case of a static network.

Parameters

painter	The QPainter provided by the scene.
option	Style options (selection, hover state).

◆ pen()

QPen GraphicsEdge::pen ( ) const

Returns the QPen for this edge – the pen changes when the edge state changes/.

Returns

◆ rebuildPens()

void GraphicsEdge::rebuildPens ( )

private

Rebuilds the three cached QPens and the cached QBrush.

Called from the constructor and from any setter that changes a pen-relevant field (color, weight/width, style). This keeps paint() free of per-repaint object construction.

◆ removeRefs()

void GraphicsEdge::removeRefs ( )

Removes any references to this edge in source and target nodes.

◆ setArrowSize()

void GraphicsEdge::setArrowSize ( const int & size )

Sets the arrow size for this edge. Recalculates only the four cached arrow-corner points (no path rebuild) then schedules a repaint.

◆ setColor()

void GraphicsEdge::setColor ( const QString & str )

Sets the edge color.

Parameters

str

◆ setDirectionType()

void GraphicsEdge::setDirectionType ( const int & dirType = 0 )

Changes the direction type of edge A->B.

◆ setHighlighted()

void GraphicsEdge::setHighlighted ( const bool & flag )

Toggles the highlighted state of the the edge, if highlighting is allowed.

Called from GraphicsNode when the user hovers over the node.

Parameters

flag

◆ setHighlighting()

void GraphicsEdge::setHighlighting ( const bool & toggle )

Toggles edge highlighting on or off.

If enabled, the edge can be highlighted.

Parameters

toggle

◆ setLabel()

void GraphicsEdge::setLabel ( const QString & label )

Changes the edge label.

Called from MW when user wants to change an edge's label

Parameters

label

◆ setLabelVisibility()

void GraphicsEdge::setLabelVisibility ( const bool & toggle )

Toggles the graphics edge label visibility.

Parameters

toggle

◆ setMinimumOffsetFromNode()

void GraphicsEdge::setMinimumOffsetFromNode ( const int & offset )

Updates Minimum Offset From Node and calls adjust to update the edge.

Parameters

offset

◆ setSourceNode()

void GraphicsEdge::setSourceNode ( GraphicsNode * node )

Sets the source node of this graphics edge.

Parameters

node

◆ setSourceNodeSize()

void GraphicsEdge::setSourceNodeSize ( const int & size )

Called from graphicsNode to update edge offset from source node (i.e. when node size changes).

Parameters

offset

◆ setState()

void GraphicsEdge::setState ( const int & state )

Sets the edge state.

Parameters

state

◆ setStyle()

void GraphicsEdge::setStyle ( const Qt::PenStyle & style )

Sets the PenStyle of this edge.

Parameters

style

◆ setTargetNode()

void GraphicsEdge::setTargetNode ( GraphicsNode * node )

Sets the target node.s.

Parameters

node

◆ setTargetNodeSize()

void GraphicsEdge::setTargetNodeSize ( const int & size )

Called from graphicsNode to update edge offset from target node (i.e. when node size changes).

Parameters

offset

◆ setWeight()

void GraphicsEdge::setWeight ( const qreal & w )

Changes the edge weight - Updates both the width and the weightNumber.

Called from MW when user wants to change an edge's weight.

Parameters

w

◆ setWeightNumberVisibility()

void GraphicsEdge::setWeightNumberVisibility ( const bool & toggle )

Toggles visibility of weight numbers.

Parameters

toggle

◆ shape()

QPainterPath GraphicsEdge::shape ( ) const

Returns the shape of this edge as a QPainterPath in local coordinates. The shape is used for many things, including collision detection, hit tests, and for the QGraphicsScene::items() functions. The default implementation calls boundingRect() to return a simple rectangular shape, but we reimplement it to return a more accurate shape for non-rectangular items.

Returns: QPainterPath

◆ showArrows()

void GraphicsEdge::showArrows ( const bool & drawArrows )

Toggles displaying edge arrow.

Parameters

drawArrows

◆ sourceNode()

GraphicsNode * GraphicsEdge::sourceNode ( ) const

Returns the source node of this graphics edge.

Returns

◆ sourceNodeNumber()

int GraphicsEdge::sourceNodeNumber ( )

Returns the source node number

Returns: int

◆ style()

Qt::PenStyle GraphicsEdge::style ( ) const

Returns the PenStyle of this edge.

Returns

◆ targetNode()

GraphicsNode * GraphicsEdge::targetNode ( ) const

Returns the target node.

Returns

◆ targetNodeNumber()

int GraphicsEdge::targetNodeNumber ( )

Returns the target node number

Returns: int

◆ toggleBezier()

void GraphicsEdge::toggleBezier ( const bool & toggle )

◆ type()

int GraphicsEdge::type ( ) const

inline

◆ weight()

qreal GraphicsEdge::weight ( ) const

Returns the weight/value of this edge.

Returns

◆ width()

qreal GraphicsEdge::width ( ) const

Returns the width of the edge as a function of edge weight.

Returns

Member Data Documentation

◆ angle

qreal GraphicsEdge::angle

private

◆ edgeLabel

GraphicsEdgeLabel* GraphicsEdge::edgeLabel

private

◆ edgeOffset

QPointF GraphicsEdge::edgeOffset

private

◆ graphicsWidget

GraphicsWidget* GraphicsEdge::graphicsWidget

private

◆ line_dx

qreal GraphicsEdge::line_dx

private

◆ line_dy

qreal GraphicsEdge::line_dy

private

◆ line_length

qreal GraphicsEdge::line_length

private

◆ m_arrowSize

qreal GraphicsEdge::m_arrowSize

private

◆ m_Bezier

bool GraphicsEdge::m_Bezier

private

◆ m_brush

QBrush GraphicsEdge::m_brush

private

◆ m_color

QColor GraphicsEdge::m_color

private

◆ m_colorNegative

QString GraphicsEdge::m_colorNegative

private

◆ m_destArrowP1

QPointF GraphicsEdge::m_destArrowP1

private

◆ m_destArrowP2

QPointF GraphicsEdge::m_destArrowP2

private

◆ m_drawArrows

bool GraphicsEdge::m_drawArrows

private

◆ m_drawLabel

bool GraphicsEdge::m_drawLabel

private

◆ m_drawWeightNumber

bool GraphicsEdge::m_drawWeightNumber

private

◆ m_edgeDirType

int GraphicsEdge::m_edgeDirType

private

◆ m_hoverHighlighting

bool GraphicsEdge::m_hoverHighlighting

private

◆ m_isClicked

bool GraphicsEdge::m_isClicked

private

◆ m_label

QString GraphicsEdge::m_label

private

◆ m_minOffsetFromNode

qreal GraphicsEdge::m_minOffsetFromNode

private

◆ m_offsetFromSourceNode

qreal GraphicsEdge::m_offsetFromSourceNode

private

◆ m_offsetFromTargetNode

qreal GraphicsEdge::m_offsetFromTargetNode

private

◆ m_path

QPainterPath GraphicsEdge::m_path

private

◆ m_penHighlight

QPen GraphicsEdge::m_penHighlight

private

◆ m_penHover

QPen GraphicsEdge::m_penHover

private

◆ m_penRegular

QPen GraphicsEdge::m_penRegular

private

◆ m_srcAngle

qreal GraphicsEdge::m_srcAngle

private

◆ m_srcArrowP1

QPointF GraphicsEdge::m_srcArrowP1

private

◆ m_srcArrowP2

QPointF GraphicsEdge::m_srcArrowP2

private

◆ m_state

int GraphicsEdge::m_state

private

◆ m_style

Qt::PenStyle GraphicsEdge::m_style

private

◆ m_weight

qreal GraphicsEdge::m_weight

private

◆ m_width

qreal GraphicsEdge::m_width

private

◆ source

GraphicsNode* GraphicsEdge::source

private

◆ sourcePoint

QPointF GraphicsEdge::sourcePoint

private

◆ target

GraphicsNode * GraphicsEdge::target

private

◆ targetPoint

QPointF GraphicsEdge::targetPoint

private

◆ weightNumber

GraphicsEdgeWeight* GraphicsEdge::weightNumber

private

The documentation for this class was generated from the following files:

Public Types

Public Slots

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Member Enumeration Documentation

◆ anonymous enum

Constructor & Destructor Documentation

◆ GraphicsEdge()

◆ ~GraphicsEdge()

Member Function Documentation

◆ addLabel()

◆ addWeightNumber()

◆ adjust

◆ arrowSize()

◆ boundingRect()

◆ color()

◆ colorToPajek()

◆ computeArrowPoints()

◆ directionType()

◆ dx()

◆ dy()

◆ itemChange()

◆ label()

◆ length()

◆ paint()

◆ pen()

◆ rebuildPens()

◆ removeRefs()

◆ setArrowSize()

◆ setColor()

◆ setDirectionType()

◆ setHighlighted()

◆ setHighlighting()

◆ setLabel()

◆ setLabelVisibility()

◆ setMinimumOffsetFromNode()

◆ setSourceNode()

◆ setSourceNodeSize()

◆ setState()

◆ setStyle()

◆ setTargetNode()

◆ setTargetNodeSize()

◆ setWeight()

◆ setWeightNumberVisibility()

◆ shape()

◆ showArrows()

◆ sourceNode()

◆ sourceNodeNumber()

◆ style()

◆ targetNode()

◆ targetNodeNumber()

◆ toggleBezier()

◆ type()

◆ weight()

◆ width()

Member Data Documentation

◆ angle

◆ edgeLabel

◆ edgeOffset

◆ graphicsWidget

◆ line_dx

◆ line_dy

◆ line_length

◆ m_arrowSize

◆ m_Bezier

◆ m_brush

◆ m_color

◆ m_colorNegative

◆ m_destArrowP1

◆ m_destArrowP2

◆ m_drawArrows

◆ m_drawLabel

◆ m_drawWeightNumber

◆ m_edgeDirType

◆ m_hoverHighlighting

◆ m_isClicked

◆ m_label

◆ m_minOffsetFromNode
