GraphicsNode Class Reference

#include <graphicsnode.h>

Inheritance diagram for GraphicsNode:

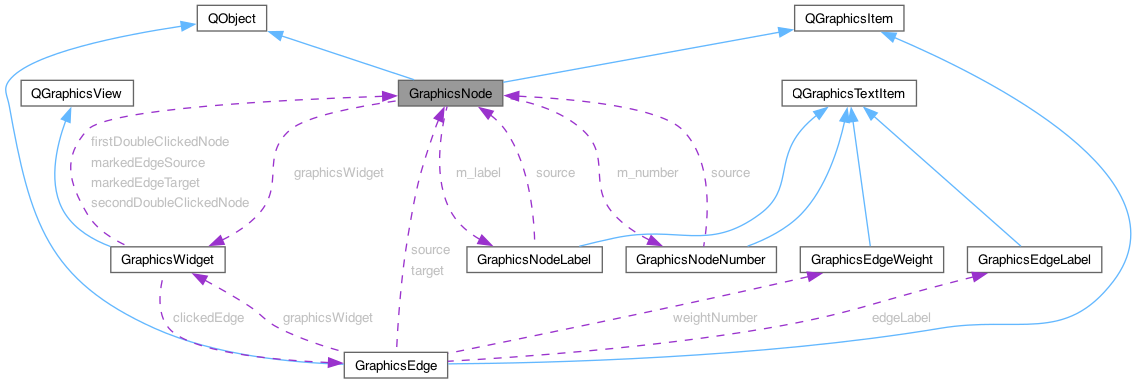

Collaboration diagram for GraphicsNode:

Public Types
enum	{ Type = UserType + 1 }

Signals
void	nodeClicked (GraphicsNode *)

Public Member Functions
	GraphicsNode (GraphicsWidget *gw, const int &num, const int &size, const QString &color, const QString &shape, const QString &iconPath, const bool &showNumbers, const bool &numbersInside, const QString &numberColor, const int &numberSize, const int &numDistance, const bool &showLabels, const QString &label, const QString &labelColor, const int &labelSize, const int &labelDistance, const bool &edgeHighlighting, QPointF p)
	Constructs a new node object (which is a graphics item).
	~GraphicsNode ()
int	type () const
QRectF	boundingRect () const
	Returns the bounding rectangle of the node.
QPainterPath	shape () const
	Returns the shape of the node as a path in local coordinates.
void	paint (QPainter *painter, const QStyleOptionGraphicsItem *option, QWidget *widget)
	Does the actual painting using the QPainterPath created by the setShape().
int	nodeNumber ()
void	addInEdge (GraphicsEdge *edge)
	Adds an inbound edge to this node.
void	removeInEdge (GraphicsEdge *)
	Removes the inbound edge from this node.
void	addOutEdge (GraphicsEdge *edge)
	Adds a outbound edge to this node.
void	removeOutEdge (GraphicsEdge *)
	Removes an outbound edge from this node.
void	setSize (const int &)
	Changes the size of the node.
int	size () const
	Returns the esoteric size of the node.
void	setShape (const QString, const QString &iconPath=QString())
	Sets the shape of the node and prepares the corresponding QPainterPath m_path which will be drawn by our painter (see paint()).
QString	nodeShape ()
void	setColor (const QString &colorName)
	Changes the color of the node. The new color name can be in one of these formats:
void	setColor (QColor color)
	Changes the color of the node (overloaded).
QString	color ()
	Returns the node color in the format "#RRGGBB".
void	addLabel ()
	Creates a graphics label to this node.
GraphicsNodeLabel *	label ()
	Returns the graphics label of the node.
void	deleteLabel ()
	Deletes the graphics label of this node.
void	setLabelVisibility (const bool &toggle)
	Toggles the visibiity of the node label.
void	setLabelSize (const int &size)
	Sets the size of the node label.
void	setLabelText (const QString &label)
	Sets the label of this node.
void	setLabelColor (const QString &color)
	Sets the color of the node label.
QString	labelText ()
	Returns the label of the node.
void	setLabelDistance (const int &distance)
	Sets the distance of the label from the node.
void	addNumber ()
	Adds a graphics number to the node.
GraphicsNodeNumber *	number ()
	Returns the graphics node number.
void	deleteNumber ()
	Deletes the graphics node number.
void	setNumberVisibility (const bool &toggle)
	Toggles the visibility of graphics node number.
void	setNumberInside (const bool &toggle)
	Toggles displaying node number inside the node.
void	setNumberSize (const int &size)
	GraphicsNode::setNumberSize.
void	setNumberDistance (const int &distance)
	GraphicsNode::setNumberDistance.
void	setNumberColor (const QString &color)
	GraphicsNode::setNumberColor.
void	setEdgeHighLighting (const bool &toggle)
	GraphicsNode::hoverEnterEvent on hover on node, it highlights all connected edges.

Protected Member Functions
QVariant	itemChange (GraphicsItemChange change, const QVariant &value)
	Called when the node changes, i.e. moves, becomes disabled or changes its visibility Propagates the changes to connected elements, i.e. edges, numbers, etc. Checks if the node is inside the scene.

Private Attributes
GraphicsWidget *	graphicsWidget
QPainterPath	m_path
QPointF	newPos
QPolygonF *	m_poly_t
int	m_num
int	m_size
int	m_size_orig
int	m_state
int	m_numSize
int	m_labelSize
int	m_numberDistance
int	m_labelDistance
QString	m_shape
QString	m_iconPath
QString	m_numColor
QColor	m_col
QColor	m_col_orig
QColor	m_col_outline
QString	m_labelText
QString	m_labelColor
bool	m_hasNumber
bool	m_hasLabel
bool	m_hasNumberInside
bool	m_edgeHighLighting
list< GraphicsEdge * >	inEdgeList
list< GraphicsEdge * >	outEdgeList
GraphicsNodeLabel *	m_label
GraphicsNodeNumber *	m_number

Detailed Description

This is actually a container-class. Contains the graphical objects called Nodes, which are displayed as triangles, boxes, circles, etc, on the GraphicsWidget. Each node "knows" the others with which she is connected.

Member Enumeration Documentation

anonymous enum

anonymous enum

Enumerator
Type

Constructor & Destructor Documentation

GraphicsNode()

GraphicsNode::GraphicsNode	(	GraphicsWidget *	gw,
		const int &	num,
		const int &	size,
		const QString &	color,
		const QString &	shape,
		const QString &	iconPath,
		const bool &	showNumbers,
		const bool &	numbersInside,
		const QString &	numberColor,
		const int &	numberSize,
		const int &	numDistance,
		const bool &	showLabels,
		const QString &	label,
		const QString &	labelColor,
		const int &	labelSize,
		const int &	labelDistance,
		const bool &	edgeHighlighting,
		QPointF	p )

Constructs a new node object (which is a graphics item).

Parameters

gw
num
size
color
shape
iconPath
showNumbers
numbersInside
numberColor
numberSize
numDistance
showLabels
label
labelColor
labelSize
labelDistance
edgeHighlighting
p

~GraphicsNode()

GraphicsNode::~GraphicsNode

(

)

Member Function Documentation

addInEdge()

void GraphicsNode::addInEdge

(

GraphicsEdge *

edge

)

Adds an inbound edge to this node.

Called from a new connected in-link to acknowloedge itself to this node.

Parameters

edge

addLabel()

void GraphicsNode::addLabel

(

)

Creates a graphics label to this node.

addNumber()

void GraphicsNode::addNumber

(

)

Adds a graphics number to the node.

addOutEdge()

void GraphicsNode::addOutEdge

(

GraphicsEdge *

edge

)

Adds a outbound edge to this node.

Called from the edge itself.

Parameters

edge

boundingRect()

QRectF GraphicsNode::boundingRect

(

)

const

Returns the bounding rectangle of the node.

The bounding rectangle is the area where all painting will take place.

Returns

color()

QString GraphicsNode::color

(

)

Returns the node color in the format "#RRGGBB".

Returns

QString

deleteLabel()

void GraphicsNode::deleteLabel

(

)

Deletes the graphics label of this node.

deleteNumber()

void GraphicsNode::deleteNumber

(

)

Deletes the graphics node number.

itemChange()

QVariant GraphicsNode::itemChange ( GraphicsItemChange change, const QVariant & value )

protected

Called when the node changes, i.e. moves, becomes disabled or changes its visibility Propagates the changes to connected elements, i.e. edges, numbers, etc. Checks if the node is inside the scene.

Parameters

change
value

Returns

label()

GraphicsNodeLabel * GraphicsNode::label

(

)

Returns the graphics label of the node.

Returns

labelText()

QString GraphicsNode::labelText

(

)

Returns the label of the node.

Returns

QString

nodeClicked

void GraphicsNode::nodeClicked ( GraphicsNode * )

signal

nodeNumber()

int GraphicsNode::nodeNumber ( )

inline

nodeShape()

QString GraphicsNode::nodeShape ( )

inline

number()

GraphicsNodeNumber * GraphicsNode::number

(

)

Returns the graphics node number.

Returns

paint()

void GraphicsNode::paint	(	QPainter *	painter,
		const QStyleOptionGraphicsItem *	option,
		QWidget *	widget )

Does the actual painting using the QPainterPath created by the setShape().

Called by GraphicsView and GraphicsNode methods in every update()

Parameters

painter
option

removeInEdge()

void GraphicsNode::removeInEdge

(

GraphicsEdge *

edge

)

Removes the inbound edge from this node.

Parameters

link

removeOutEdge()

void GraphicsNode::removeOutEdge

(

GraphicsEdge *

edge

)

Removes an outbound edge from this node.

Parameters

edge

setColor() [1/2]

void GraphicsNode::setColor

(

const QString &

colorName

)

Changes the color of the node. The new color name can be in one of these formats:

• #RGB (each of R, G, and B is a single hex digit)
• #RRGGBB
• #AARRGGBB (Since 5.2)
• #RRRGGGBBB
• #RRRRGGGGBBBB
• A name from the list of colors defined in the list of SVG color keyword names provided by the WWW Consortium; for example, "steelblue" or "gainsboro". These color names work on all platforms. Note that these color names are not the same as defined by the Qt::GlobalColor enums, e.g. "green" and Qt::green does not refer to the same color.
• transparent - representing the absence of a color.

Parameters

colorStr

setColor() [2/2]

void GraphicsNode::setColor

(

QColor

color

)

Changes the color of the node (overloaded).

Also used when the user searches for a node

Parameters

color

setEdgeHighLighting()

void GraphicsNode::setEdgeHighLighting

(

const bool &

toggle

)

GraphicsNode::hoverEnterEvent on hover on node, it highlights all connected edges.

Parameters

event

GraphicsNode::hoverLeaveEvent Stops the connected edges highlighting

Parameters

event

setLabelColor()

void GraphicsNode::setLabelColor

(

const QString &

color

)

Sets the color of the node label.

Parameters

color

setLabelDistance()

void GraphicsNode::setLabelDistance

(

const int &

distance

)

Sets the distance of the label from the node.

Parameters

distance

setLabelSize()

void GraphicsNode::setLabelSize

(

const int &

size

)

Sets the size of the node label.

Parameters

size

setLabelText()

void GraphicsNode::setLabelText

(

const QString &

label

)

Sets the label of this node.

Parameters

label

setLabelVisibility()

void GraphicsNode::setLabelVisibility

(

const bool &

toggle

)

Toggles the visibiity of the node label.

Parameters

toggle

setNumberColor()

void GraphicsNode::setNumberColor

(

const QString &

color

)

GraphicsNode::setNumberColor.

Parameters

color

setNumberDistance()

void GraphicsNode::setNumberDistance

(

const int &

distance

)

GraphicsNode::setNumberDistance.

Parameters

distance

setNumberInside()

void GraphicsNode::setNumberInside

(

const bool &

toggle

)

Toggles displaying node number inside the node.

Parameters

toggle

setNumberSize()

void GraphicsNode::setNumberSize

(

const int &

size

)

GraphicsNode::setNumberSize.

Parameters

size

setNumberVisibility()

void GraphicsNode::setNumberVisibility

(

const bool &

toggle

)

Toggles the visibility of graphics node number.

Parameters

toggle

setShape()

void GraphicsNode::setShape	(	const QString	shape,
		const QString &	iconPath = QString() )

Sets the shape of the node and prepares the corresponding QPainterPath m_path which will be drawn by our painter (see paint()).

The only exception is when the shape is 'custom'. In that case, the painter will paint a pixmap with the custom node icon (loaded from iconPath). However, even in that case we are still creating a QPainterPath, because this is needed by QGraphicsNode::shape() function which is responsible for collision detection and needs to return a path with an accurate outline of the item's shape. Called every time the user needs to change the shape of an node.

Parameters

shape
iconPath

setSize()

void GraphicsNode::setSize

(

const int &

size

)

Changes the size of the node.

Parameters

size

shape()

QPainterPath GraphicsNode::shape

(

)

const

Returns the shape of the node as a path in local coordinates.

The shape is used for many things, including collision detection, hit tests, and for the QGraphicsScene::items() functions. We could ommit reimplementing this and have the default QGraphicsItem::shape() return a simple rectangular shape through boundingRect() but we opt to return an accurate outline of the item's shape.

Returns

size()

int GraphicsNode::size

(

)

const

Returns the esoteric size of the node.

Returns

type()

int GraphicsNode::type ( ) const

inline

Member Data Documentation

graphicsWidget

GraphicsWidget* GraphicsNode::graphicsWidget

private

inEdgeList

list<GraphicsEdge*> GraphicsNode::inEdgeList

private

Lists of elements attached to this node

m_col

QColor GraphicsNode::m_col

private

m_col_orig

QColor GraphicsNode::m_col_orig

private

m_col_outline

QColor GraphicsNode::m_col_outline

private

m_edgeHighLighting

bool GraphicsNode::m_edgeHighLighting

private

m_hasLabel

bool GraphicsNode::m_hasLabel

private

m_hasNumber

bool GraphicsNode::m_hasNumber

private

m_hasNumberInside

bool GraphicsNode::m_hasNumberInside

private

m_iconPath

QString GraphicsNode::m_iconPath

private

m_label

GraphicsNodeLabel* GraphicsNode::m_label

private

m_labelColor

QString GraphicsNode::m_labelColor

private

m_labelDistance

int GraphicsNode::m_labelDistance

private

m_labelSize

int GraphicsNode::m_labelSize

private

m_labelText

QString GraphicsNode::m_labelText

private

m_num

int GraphicsNode::m_num

private

m_number

GraphicsNodeNumber* GraphicsNode::m_number

private

m_numberDistance

int GraphicsNode::m_numberDistance

private

m_numColor

QString GraphicsNode::m_numColor

private

m_numSize

int GraphicsNode::m_numSize

private

m_path

QPainterPath GraphicsNode::m_path

private

m_poly_t

QPolygonF* GraphicsNode::m_poly_t

private

m_shape

QString GraphicsNode::m_shape

private

m_size

int GraphicsNode::m_size

private

m_size_orig

int GraphicsNode::m_size_orig

private

m_state

int GraphicsNode::m_state

private

newPos

QPointF GraphicsNode::newPos

private

outEdgeList

list<GraphicsEdge*> GraphicsNode::outEdgeList

private

---

The documentation for this class was generated from the following files:

• graphicsnode.h
• graphicsnode.cpp
